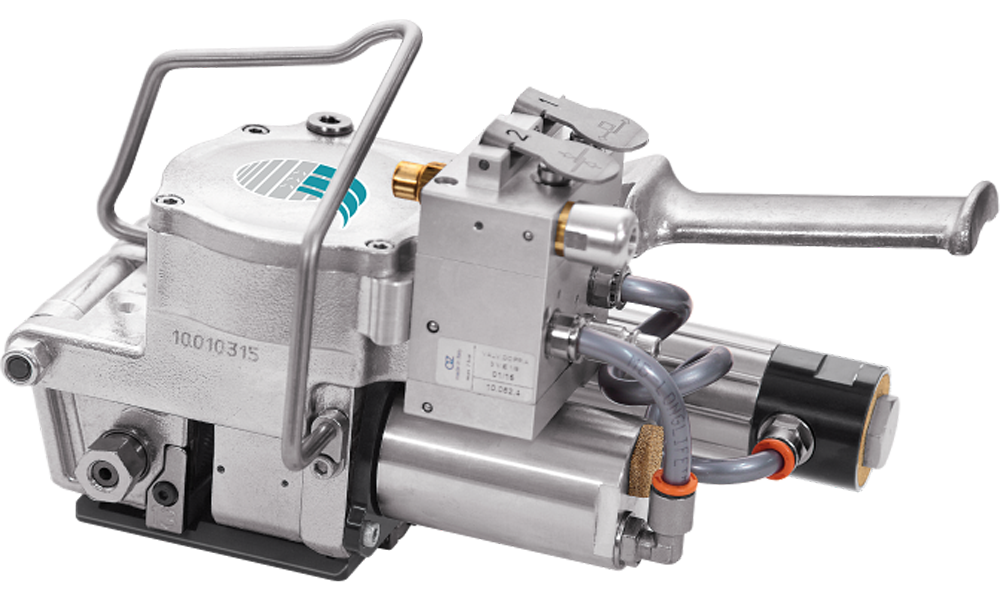

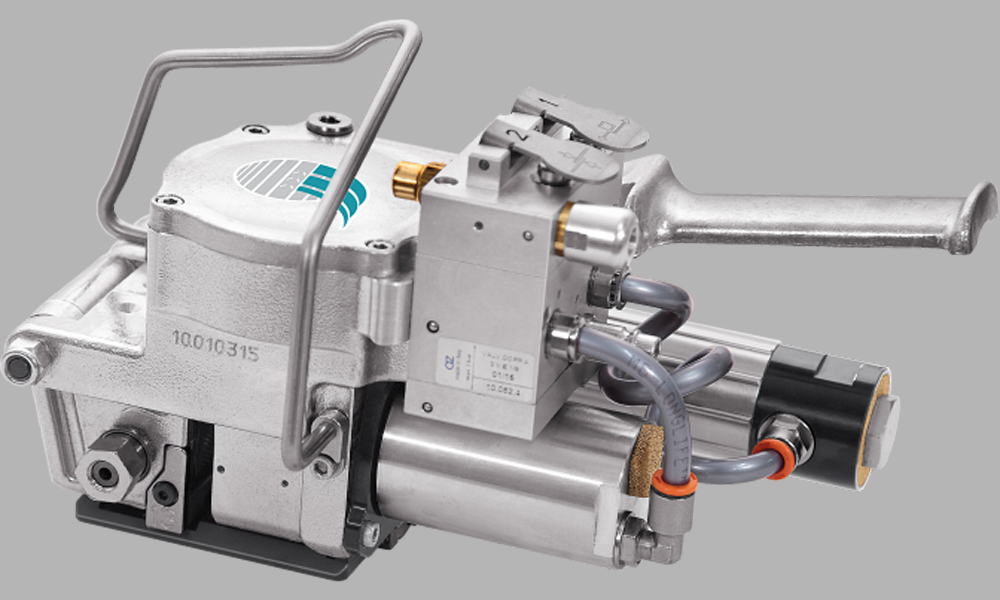

Pneumatic plastic strapping tool ITA-10

Pneumatic plastic strapping tool ITA-10
Details
  • TLength: 280mm.
  • Width: 150 mm.
  • Height: 175 mm.
  • Weight: 4.9 Kgs.
  • Pressure range: 4.5 -7 bar / 64–99 psi.
  • Air consumption: 14 L/s – 29 cuft/min.
  • Max. tension force: 2500 N – 6.5 bar- 92psi (variable with friction).
  • Tensioning speed: 11 mt/m.
  • Sealing: Vibration sealing.
  • Joint strength: 80% of breaking strength.

ITA 10 Gallery

Pneumatic strapping tool for Polypropylene and Polyester strap from 10mm to 19mm.

  • Image description

    Piccola
  • Image description

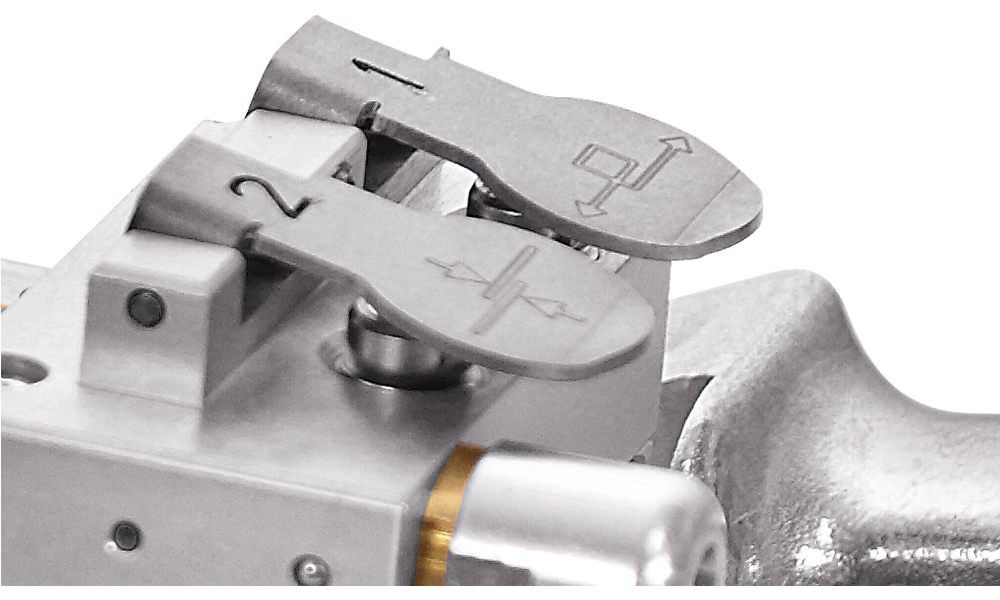

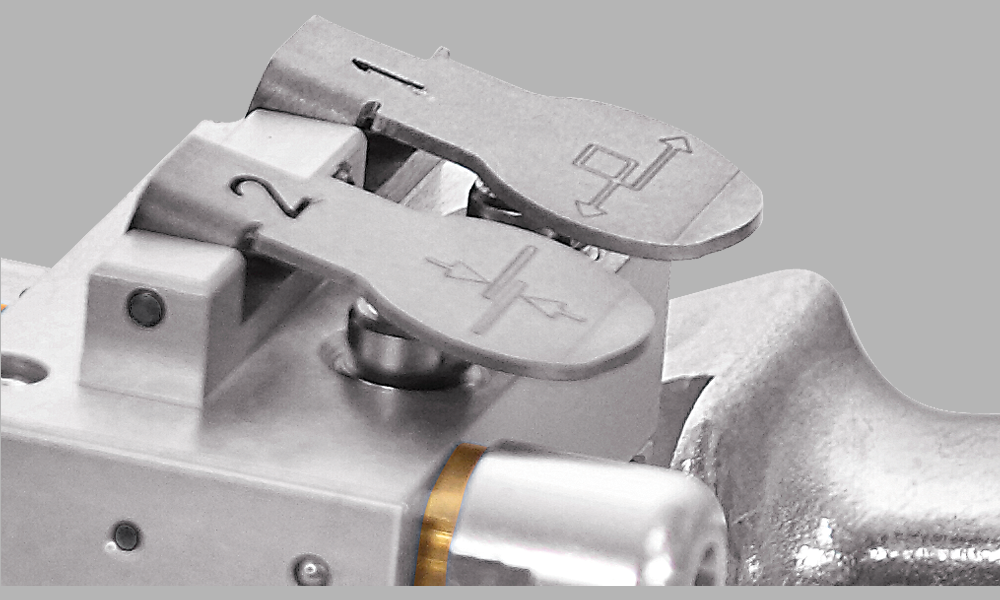

    Buttons
  • Image description

    940 X 375
